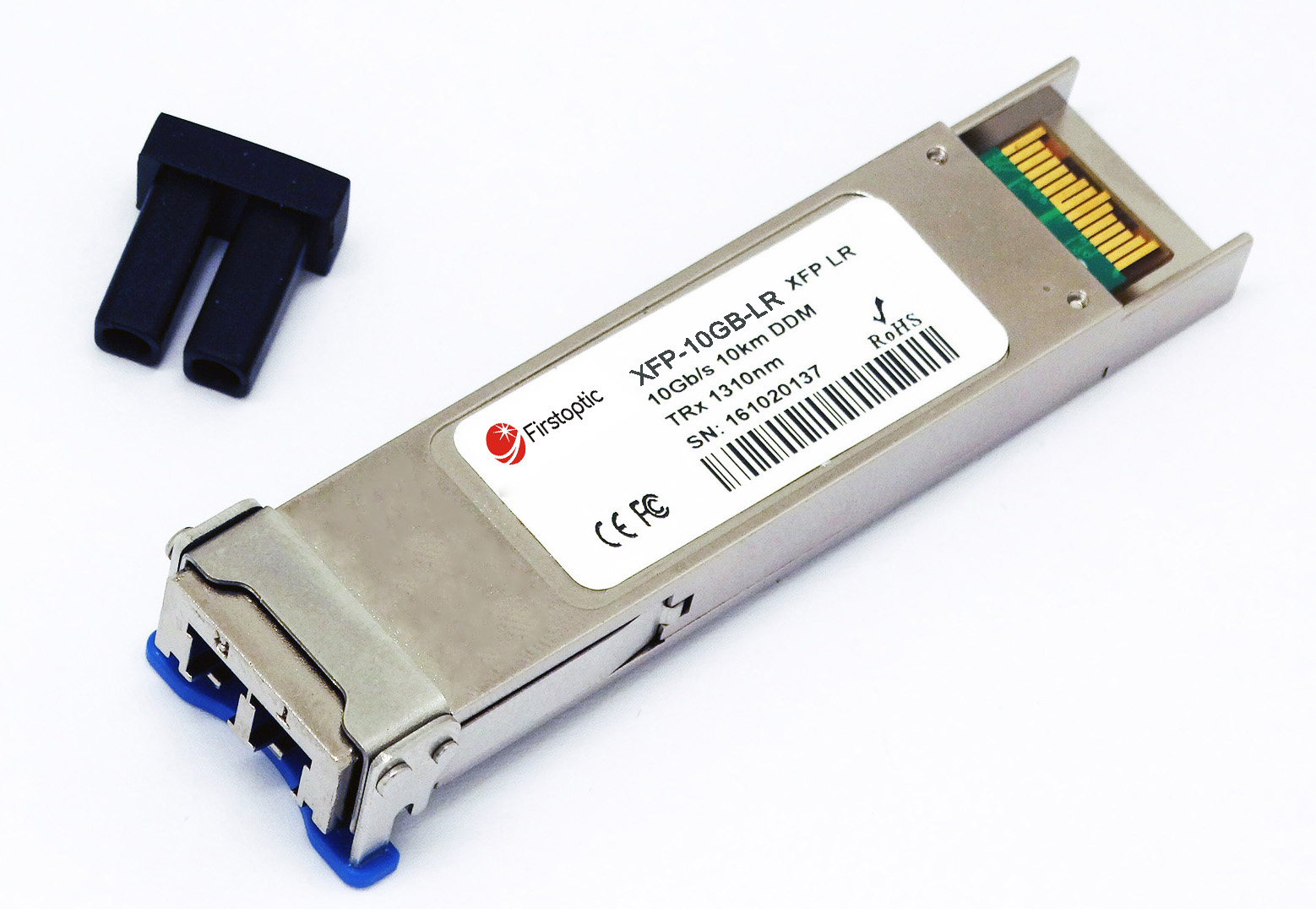

10GB XFP双纤模块深圳市好创好光电有限公司

· 产品型号:XFP-10GB-XXX

· 兼容品牌:全系列

· 封装类型:XFP

· 传输速率:Supports 9.95Gbps to 10.5Gbps bit rates

· 传输距离:10~120KM

· 发射波长:850nm/1310nm/1550nm

· 接收波长:850nm/1310nm/1550nm

· 工作温度:商业级0℃～+70℃/工业级-40℃～+85℃ 可选

· 数字诊断:带DDM

· 接收灵敏度:10~100KM

· Supports 9.95Gb/s to 11.3Gb/s bit rates

· IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.

· Hot-pluggable XFP footprint

· Maximum link length of 80km

· DFB or Temperature-stabilized EML Transmitter

· XFI Loopback Mode

· Duplex LC connector

· Low Power dissipation

· Superior Thermal and EMI integrity performance to support high port densities

· LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)

· Built-in digital diagnostic functions, DDMI

· Temperature range -5°C to 70°C or Indutrial Temperature range on request

· RoHS-6, CE, FDA, FCC, TUV, UL certifactes

· SONET OC-192 / SDH STM-64

· ITU-T G.709

· 10GBASE-SR/LR/ER/EW/ZR

· 10GBASE-SR/LR/ER/EW/ZR+ FEC

· 10/40/80 km 10G Fibre Channel

· 10/40/80 km 10G Fibre Channel + FEC

一年内提供免费维修或更换服务；
一年以上三年以内提供收材料成本费，免维修费的保修服务

10GB XFP双纤模块
