An Analysis on Principles and Key Techs of 40G/100G Coherent Optical Communication

With the advancements of high-speed Digital Signal Processing (DSP) and Analog to Digital Conversion (ADC), coherent optical communication has become a research focus. The combination of coherent detection with DSP technology can make it to carry out carrier phase synchronization and polarization tracking in the electrical field, eliminating the two major obstacles of traditional coherent receiving. In addition, DSP is simple in structure of coherent receiving, with transparency in hardware, available to compensate various transmission losses in the electrical field, to simplify transmission link, to reduce transmission cost, as well as to support multi-ary modulation format and polarization multiplexing so as to realize high spectrum efficiency. After the research and development on the 100Gb/s module in the industry for one or two years, 100G/s coherent PM-QPSK is becoming the main option in the industry.

An Analysis On the Basic Principles of Coherent Optical Communication

Coherent optical communication system can pide the optical frequency bands into many channels, so that optical frequencies can be made full use of, namely multi-channel optical fiber communication. Coherent optical communication technology has the advantage of high receiving sensitivity. The receiving sensitivity of coherent detection technology is 18dB higher than that of direct detection technology.

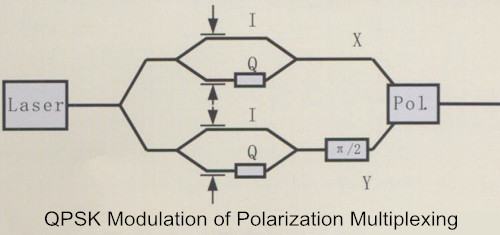

In figure 1, the transmitter uses polarization multiplexing, the laser signal as a carrier is pided into two paths(X/Y path) through the PBS (Polarization Beam Splitter). Each signal respectively modulates 10.7/27.5Gb/s signal to the carrier by the I/Q modulator(the phase difference between I and Q path is 90 degrees) composed by two MZ modulators, then multiplexing optical signals on the X axis and Y axis into one by polarization multiplexer according to polarization multiplexing to transmit out via optic fiber. After that, the transmission of 40/100Gb/s on single-mode optic fiber can be achieved.

On the receiving end, different from the intensity modulation(direct detection system), the coherent optic fiber communication system adds the Local Oscillation(LO)light source that the heterodyne or homodyne receiving needs. The optical wave transmitted out by the light source and modulated optical wave take optoelectronic mixing under the condition of wavefront matching and the polarization matching. Slight change on optical frequency of the local oscillator can change the selected channel, so the requirements for line width of local oscillator are high. The field intensity of signal optical wave output after mixing is proportional to the square of the sum of LO optical waves field intensity, from which the difference-frequency signal between LO optical wave and signal optical wave can be selected out. On account that the change rule of the difference-frequency signal is same as that of signal optical wave, unlike direct detection wave mode in which the detection current only reflects the intensity of the light wave. Therefore, various modulation modes, such as amplitude, frequency, phase and polarization, can be realized.

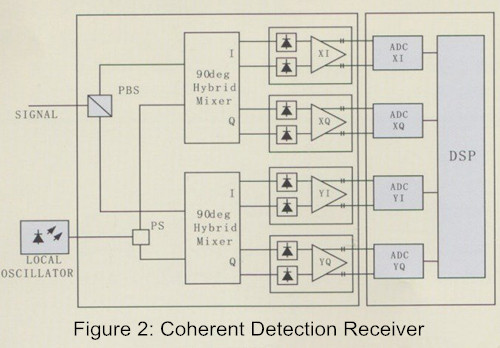

In the coherent detection method of receiver in Figure 2, due to the detection on the signal of polarization multiplexing, the received signal is decomposed into two orthogonal signals via a PBS (Polarization Beam Splitter); each orthogonal signal is mixed with a LO light source, and the control accuracy of LO light sources carrier frequency is at hundreds of KHz. After mixing, 4 optical signals with polarization and phase orthogonality are received, respectively detected by PIN. After electrical amplification and filtering, they will be converted into 4 channels of digital electrical signals via the A/D circuit. Digital electrical signal realizes these functions by the way of Digital Signal Processing (DSP) chip digital equalization, such as timing recovery, signal recovery, polarization and PMD tracking, and dispersion compensation.

Main Advantages of Coherent Optical Communication

Coherent optical communication takes full advantage of coherent communication modes features, such as the mixing gain, excellent channel selectivity and tunability and so on. Compared with IM/DD system, coherent optical communication system is with the following unique advantages:

1. With High Sensitivity and Long Relay Distance

One of the most important advantages of coherent optical communication is coherent detection, which improves the sensitivity of the receiver. In coherent optical communication system, the output photocurrent after coherent mixing is proportional to the product between optical power of signal and that of the LO. Under the same conditions, the sensitivity of coherent receiver is higher 18dB than that of common receiver, which can reach the high performance close to the limitation of shot noise. Simultaneously, the transmission distance without relay of the optical signal can be extended.

2. With High Selectivity and Large Communication Capacity

Another main advantage of the coherent optical communication is that the selectivity of receiver can be improved. In direct detection, the receiving band is relatively large. To suppress noise interference, the narrow band filter is usually set in front of the detector, but the frequency band is still very wide. In the process of coherent heterodyne detection, what is detected is mixing light of the signal light and the LO light. Therefore, only noises in the medium-frequency band can enter into the system, while other noises are filtered by microwave and medium-frequency amplifier with narrow bandwidth. It can be seen that heterodyne detection has good filtering performance, which will play a significant role in the application of coherent optical communication. In addition, due to the good wavelength selectivity of coherent detection, the coherent receiver can greatly reduce the frequency interval in the frequency pision multiplexing system so as to replace the large frequency interval of the traditional optical multiplexing technology, which is with the potential advantage of realizing higher transmission rate by frequency pision multiplexing.

If the transmission function of the medium-frequency filter in the coherent optical communication of heterodyne detection is just contrary to that of the optical fiber, the effect of the optic fiber dispersion on the system can be reduced.

An Analysis On Key Technologies of Coherent Optical Communication

1. Light Source Technology

In the coherent optical communication system, the requirements for signal light source and LO light source are relatively high. It requires narrow spectral line and frequency’s high stability. The line width of light source will decide the minimum error code rate that the system can reach. In the meantime, the frequency of the semiconductor laser is very sensitive to the changes of working temperature and the injection current(the variation is generally at dozens of GHz/℃ and dozens of GHz/mA). Therefore, except to keep injected current and temperature stable, the measures are also taken to keep optical frequency stable.

2. Receiving Technology

The receiving techs of coherent optical communication include two parts: one is the optical receiving tech; another one is the demodulation tech with various formats after intermediate frequency.

The Balanced Receiving Method: in the FSK system, it is unavoidable to produce extra noises from amplitude modulation in the modulation process of the semiconductor laser, and the noise can be reduced by using the balanced receiving method. The main concept of the balance method is that after the optical signal enters from the optic fiber, the local-oscillation light is controlled by polarization to ensure that it is adapted to the polarization state of the signal. The local-oscillation light and the signal light, passing the direction combiner at the same time, are pided into two paths, respectively input into two identical PIN photodetectors. After that, what the two optoelectronic detectors output is envelope signal with equal amplitude and inverse phase. After these two signals are synthesized, frequency-modulated signal is increased by one time, while the noises from parasitic amplitude modulation offset with each other to meet the requirements of eliminating effects from amplitude modulation noises.

Polarization Control Technology: in the system of coherent optical communication, the polarization of the signal light and local-oscillation light is definitely required in the same deviation, so as to achieve a good mixing effect and to improve the quality of the receiving. But the polarization state is unstable when the signal light is transmitted at long distance via single-mode optic fiber. To solve the problem, various methods are proposed, such as the adoptions of polarization-maintaining optic fiber, polarization controller and polarization persity receiving, etc. When the light is transmitted in the common optic fiber, the phase and the polarization plane will be randomly changed. The polarization-maintaining optic fiber is a special fiber that keeps the optical phase and polarization constant by selecting techniques and materials, but this type of optic fiber is with high loss and high cost. The polarization controller is mainly to keep signal light and local oscillation light in the same deviation, but the response speed of this method is slow and the requirements for the loop control is also higher. In the polarization persity receiving, after the mixing of signal light and local oscillation light, hybrid light is pided into two vertical polarization components by the polarization splitting element. The two vertical polarization components of local oscillation light is controlled by polarization controller, which keeps the power of two components equal. The random fluctuation of polarization in the signal light may cause the fading of medium-frequency signal in one of the branches, but the medium-frequency signal in another branch still exists. Thus, the received demodulation signal almost has nothing to do with polarization of signal light. The response speed of this tech is relatively quick. Simultaneously, it is practical, but complex to achieve.

3. External Optical Modulation Technology

In the process of the direct modulation on a certain parameter of a semiconductor lasers optical carrier, the parasitic oscillation of other parameters will always be incidental. For example, the ASK direct modulation is with the change of the phase, and the modulation depth will also be limited. In addition, the problems will also appear such as unstable frequency and late oscillation. Therefore, in coherent optical communication system, except that FSK can adopt direct injection current to operate frequency modulation, and others adopt external optical modulation.

4. Nonlinear Crosstalk Control Technology

In coherent optical communication, dense frequency pision multiplexing is often used. Therefore, the nonlinear effect in the optic fiber may make the signal intensity and phase in some channel of coherent optical communication influenced by signals of other channels, so as to form a nonlinear crosstalk.

Conclusion

In recent years, a great progress has been made in optical devices. Thereinto, these have been greatly improved, such as the output power, line width, stability and noise of the laser, as well as the bandwidth of the photodetector, the power capacity and the common-mode rejection ratio rate. Meanwhile, the performance of microwave electronic devices has been also greatly improved. These advancements make the commercialization of coherent optical communication system possible.
